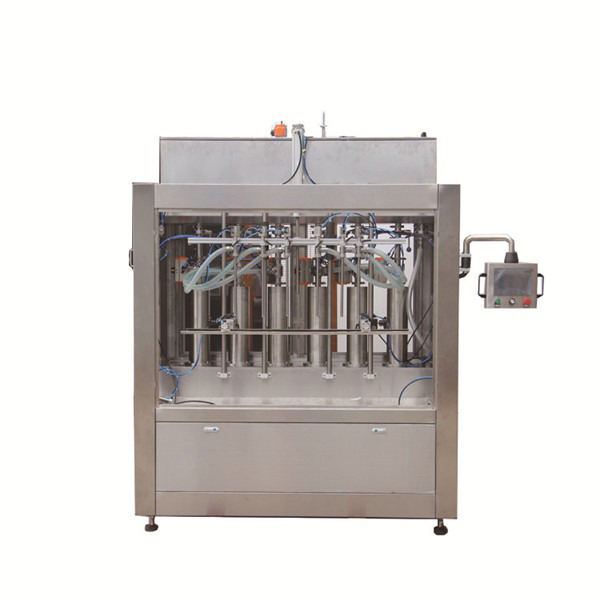

Stroj za punjenje tekućine za pranje posuđa

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Tehnički podaci

---

stroj za punjenje tekućine za pranje posuđa
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Opis

---

CE EU
ISO9001
Ispunite zahtjeve GMP-a
longlife of service, low mainteinance rate

Glavna funkcija

---

Stroj je napredna visoko precizna mašina za punjenje koja automatski može dovršiti postupak brojanja, punjenja i zatvaranja boca.

Značajke

1. Kompaktan, strukturiran, lijepog izgleda, jednostavan za rukovanje i vrlo automatiziran.

2. Kontakt komponenata s materijalom izrađen je od nehrđajućeg čelika, lako se čisti.

3. Volumen punjenja kontrolira se filmskim ventilima kako bi se osigurala točnost.

4. Brzi i vrlo precizni ventili za punjenje osiguravaju ne curenje.

5. Opremljen je visoko učinkovitim sustavom hranjenja kapa.

Opcija jezika

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Glavne karakteristike:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Može se upamtiti više parametara, korisno za različite specifikacije, promijenjene, sve doze punjenja mogu se prilagoditi zaslonom osjetljivim na dodir.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Glavni tehnički parametar

---

Artikal	Ime	Tehnički parametar
01	Dimenzija stroja (D * Š * V)	2200mm * * 1400mm 2800mm
02	Težina stroja	Oko 1400Kg
03	Unutarnji promjer posude	≥φ35mm
04	Prikladan spremnik	1Liter .2Liter
05	Visina posude	80-350mm
06	Napajanje	AC 380V; 50HZ
07	Vlast	5kW
08	Točnost punjenja	≤ ± 1%
09	Izvor zraka	0,6Mpa stabilan i čist komprimirani zrak
11	Broj mlaznica za punjenje	13
12	Visina transportera	900mm ± 50mm
13	kapacitet	≤3200 boca / sat (uzmite vodu kao test)
14	Boca u smjeru hranjenja	S lijeva na desno

Brzi detalji

---

Vrsta: Stroj za punjenje
Stanje: Novo
Primjena: Kemijska
Vrsta ambalaže: Boce
Materijal za pakiranje: Drvo
Automatski stupanj: Automatski
Vrsta pogona: pneumatski
Napon: 220v
Snaga: 3KW
Mjesto podrijetla: Šangaj. Kina (kopno)
Naziv marke: VKPAK
Dimenzija (D * Š * V): 2200 mm * 1400 mm * 2800 mm
Težina: 1.400
Certifikat: CE
Dostavna usluga: Inženjeri dostupni za servisiranje strojeva u inozemstvu
materijal: SS304
PLC: Panasonic
Zaslon osjetljiv na dodir: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
